Anser X1
Superior print quality
Over the past few years, TIJ printers have undergone rapid advancements and have emerged as the leading technology in print resolution. Although CIJ printers can still generate accurate dot patterns, TIJ printers can achieve a print resolution of up to 600 x 600 dpi. You might have already witnessed the capabilities of TIJ printers through your desktop inkjet printer. It is now possible to achieve the same high level of quality and resolution in an industrial environment as well.
Compact footprint
If you're considering incorporating continuous printers into your production line, you're likely wondering about the space requirements. In comparison to CIJ printers, TIJ printers take up less space. Designed for industrial use, TIJ printers typically consist of a print head connected to a control panel, resulting in a smaller footprint. Additionally, their compact size allows for greater portability, which is more challenging to achieve with a CIJ printer.
Key Features
NexGen Coding Technology
The ANSER X1 boasts NexGen Coding Technology, which is specifically designed to operate all thermal inkjet cartridges. This comprehensive solution provides everything you need for all of your coding requirements. It offers versatile ink selection, involving multiple TIJ cartridges. These cartridges can contain everything from general-purpose inks to specialised varieties, enabling you to fulfill your industry-specific requirements with ease.
Robust Design
The X1 delivers durability and dependability even in the most challenging working conditions. With an industrial-grade cable that can endure up to 30kg of pull-force, accidental cable disconnections are prevented. The scratch-resistant touch screen is sensitive like a smartphone and can be operated with gloves. The X1 also boasts an industrial-grade mechanical design that can withstand accidental impacts during operation. Additionally, its cooling fin design ensures reliable coding even in high-temperature environments.
IP66 Protection
The X1 features an IP66 rating as standard, providing complete protection against dust ingress. Additionally, the X1 is designed to withstand high-pressure water jets that are commonly used in production washdown processes, ensuring uninterrupted performance even in harsh environments. This protection is essential in preventing damage to the printer's internal components, ultimately leading to enhanced longevity and reliability.
Control & Monitoring

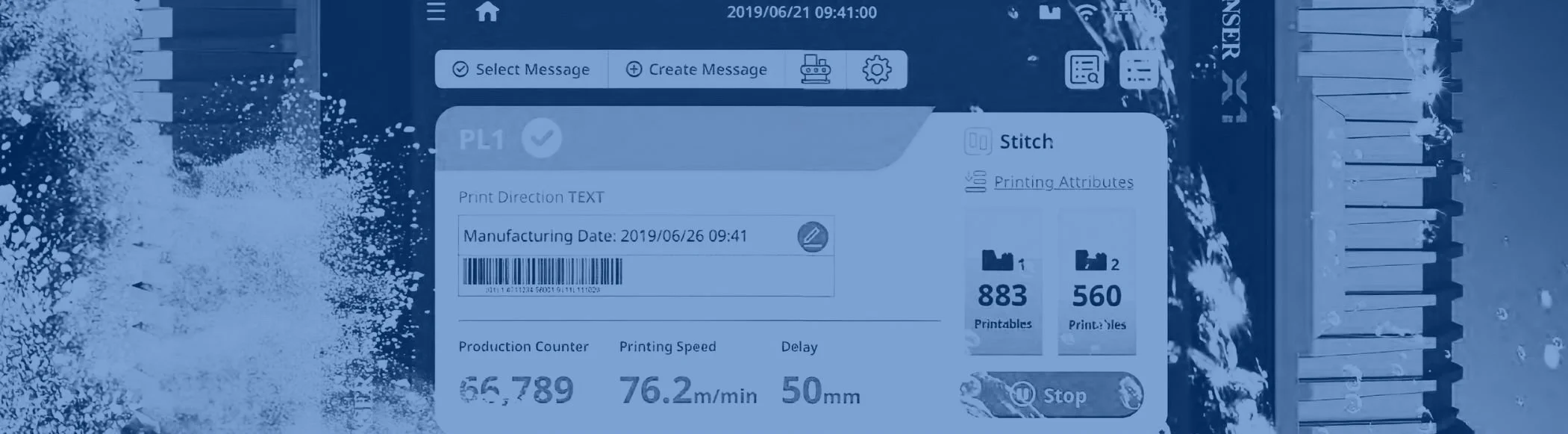

The X1 provides an access control and status monitoring system that can be easily customised to suit your needs, providing the capability to prevent human errors during operation. The display dashboard includes a preventive notification feature to help avoid production downtime. It can effortlessly manage and monitor two production lines at once, thanks to its user-friendly interface. Additionally, it provides production and ink analysis reports.
Tech Specs & Dimensions
Controller
| Dimensions | 291 x 142 x 52mm |
|---|---|
| Weight | 2.12 kg |
| Display | 7” Color LCD Capacitive Touchscreen (800x480 px) |
| Operating Temperature | 0°C - 40°C |
| Power Input | AC 100V~240V, 50/60Hz (90Watt) |
| Communication Protocols | TCP IP/UDP, Modbus TCP, and ANSER U2 Net protocol |
| I/O Ports | USB 2.0 connector x 2, RS-485 & RS-232 connector, RJ-45 connector, Digital I/O connector (1 IN & 5 OUT pins), Encoder, Photocell |
| Operating RH | 0%~90%, Non-condensing |
| Printing Functions | Static Data: Text, Logo; Dynamic Data: String, Shift, Counter, Production Date, Expiration Date |
Printhead
| Dimensions | 82 x 30 x 210 mm |
|---|---|
| Weight | 0.46kg |
| Print Height - Single Print Head | 12.7mm or 25.4mm |
| Print Height - Stitch Print Head | 12.7mm x 2 @ 25.4mm; 25.4mm x 2 @ 50mm |
| Operating Temperature | 0°C - 40°C |
| Printing Resolution | 600 x 600 DPI |
| Printing Speeds | 30m/min @ 600 DPI; 300m/min @ 60 DPI |
| Printing Distance | 6mm |
| Operating RH | 0%~90%, Non-condensing |
